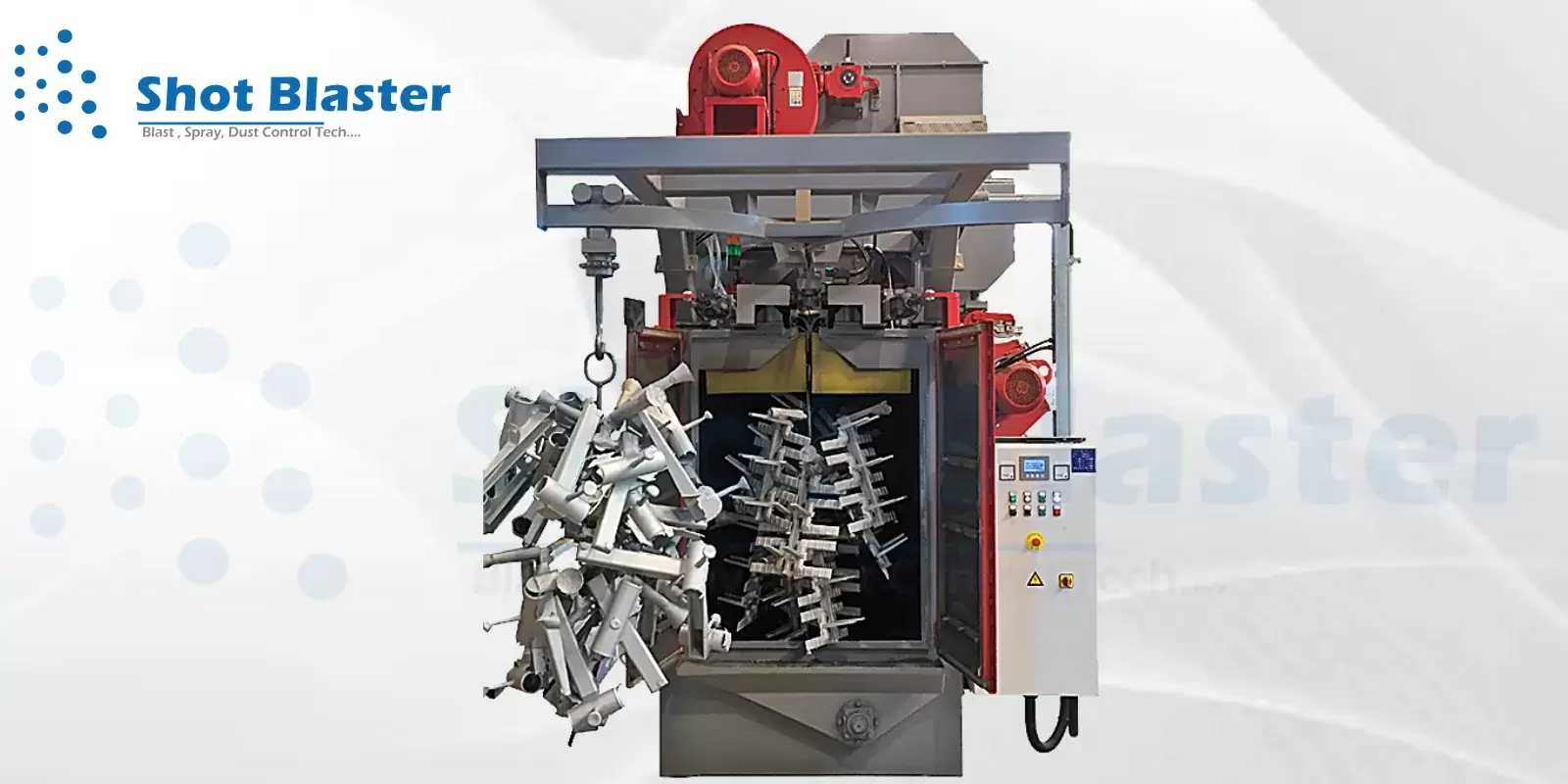

Hanger type shot blasting machine is named so because in this type of machine components will be hanged on the hanger and can be rotated, components are rotating so it's also called spinner shot blasting machine. In spinner hanger shot blasting machine or hook type shot blasting machine hanger are mounted on the doors of the shot blasting cabinet. For the blasting operation, the door of the machine is opened where blasting is done and components are loaded onto the hanger. Then the door is closed and the blast wheel system is operated. 2 Nos. of blast wheel stations are located strategically around the cabinet which fires abrasive material or media on the rotating components loaded on the hanger in the spinner.
The components are shot blasted homogeneously all around the rotating hanger and thus clean the components effectively in hook type shot blasting machine. After the blast cleaning cycle is over, the blast wheel is shut off and the door is opened for unloading of components which is done manually.
TECHNICAL SPECIFICATIONS:
There are three types of machines available which can be listed as follows:
- Closed-loop type shot blasting machine
- Y-type spinner hanger blast machine
- Gate type spinner hanger blast machine
Closed-loop hanger type:
It consists close-loop conveyor system which consists of 6 No’s (or more as per requirement) of chain-driven trolleys with fixtures to hold the hangers. The components or pieces which are to be shot blasted are placed on these hangers and one by one taken inside the blasting chamber for blasting purposes by the chain-driven mechanism system. Blast wheel stations are located strategically around the cabinet and with high-velocity abrasive material are shot on a rotating hanger that contains components in hook type. The components are shot blasted evenly all around. After the blast cleaning cycle is over, the blast wheel is shut off and the hanger is taken out for the unloading process of the component in the spinner hanger blast machine. This makes the process continues with the next hanger placed on the chain-driven trolley.
Y-type hanger type:

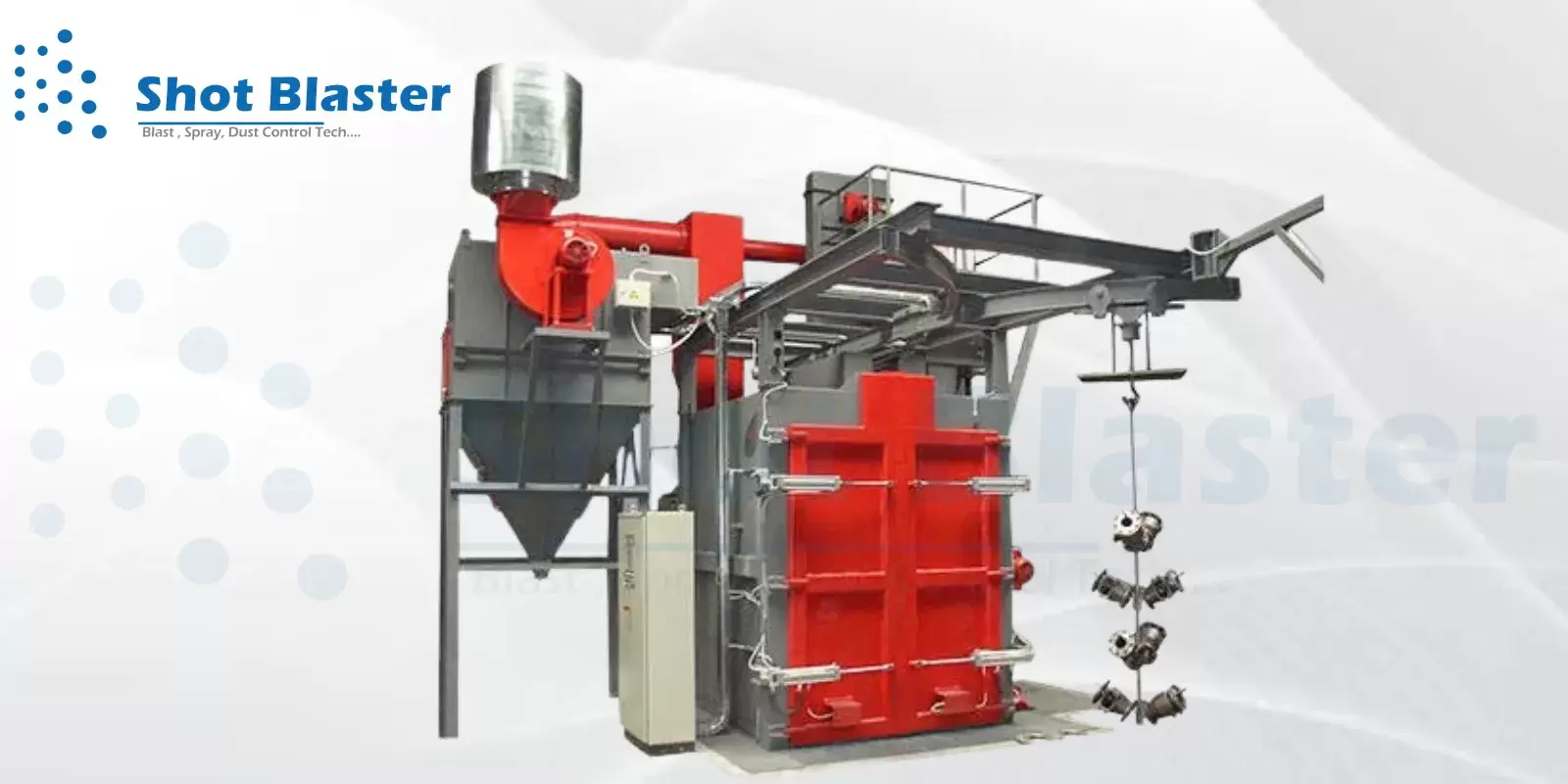

The door of the machine is opened automatically or manually and components or pieces are loaded on to the trolley mounted hanger. The door is then closed and the blast wheel system is operated in a spinner hanger blast machine or hook type shot blasting machine. The abrasive at high speed falls upon the components on the rotating hanger, hanger rotates in both clockwise & Anti-clockwise direction and for a definite time period set by the operator and thus blast cleans the components thoroughly. After the blast cleaning cycle is over, the blast wheel is shut off and the door is opened and the hanger moves out for unloading of pieces or blasting surfaces. At the instant time, another hanger on the Y-track moves in for blasting purposes.
Door type Hanger Shot Blasting Machine
Indoor type shot blasting Machine the components are hanged and rotated on the gate or the door of the machine so that blasting can be done on all sides. In this machine, the hanger is mounted on the doors of the shot blasting machine. For the blasting operation, the door of the machine is opened either manually or pneumatically and then components are loaded onto the door hanger. Then the door is closed and the blast wheel system is operated. Blast wheel stations are located strategically around the cabinet & abrasive media or media are propelled on rotating components. The components are shot blasted homogeneously all around on the rotating hanger and blast cleans the components or pieces loaded on them. After the blast cleaning cycle is over, the door is opened for the unloading of components that can be done manually or automatically.
Hanger type shot blasting machine Manufacturers in India
We are one of the best Hanger type shot blasting machine manufacturers in India. we also provide sand blasting machine, thermal spray gun, Shot blasting machine, Sand blasting equipment, Grit blasting machine in India. and We provide service in all cities as (Jodhpur, Jaipur, Bhiwadi, Alwar, Faridabad, Gurgaon, Noida, Ghaziabad, Agra, Mumbai, Pune, Kolhapur, Solapur, Chennai, Bangalore, Madurai, Coimbatore, Kolkata ) at low cost, best price with the best quality.
